02 · ROM

Put fixed data in the FPGA's block memory: a screen of text and two pictures. Two ways to build a ROM, both in the same design, and one of them rewritten from the PC while the design runs.

The repo keeps the full project (.qar, plus the sources here) but no prebuilt bitstream: one build (a few minutes) makes the .sof on your computer.

What you will see

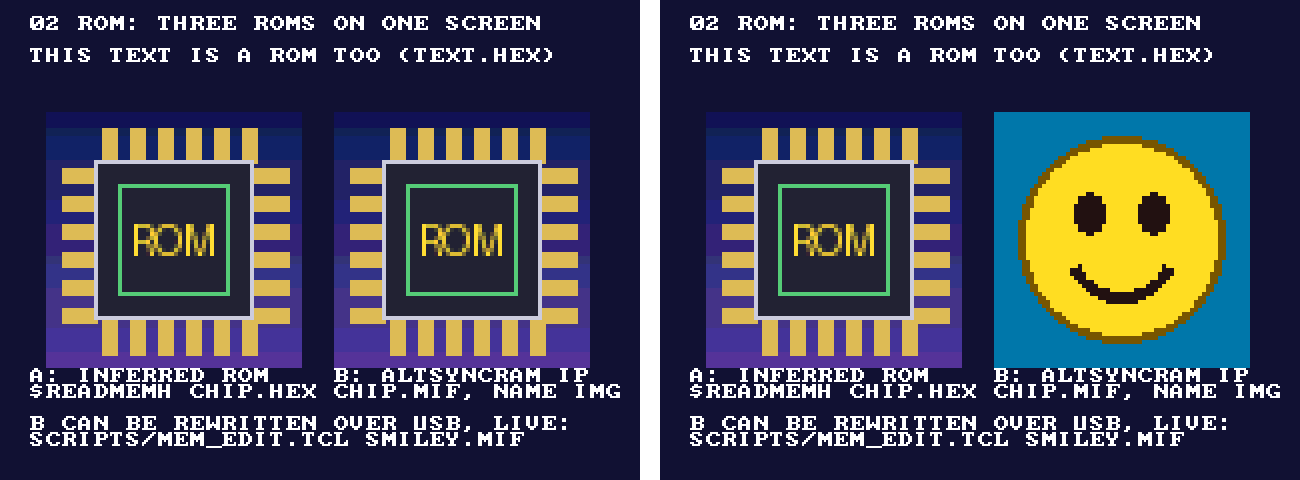

The screen read back from the board over USB, before and after rewriting ROM B from the PC:

Block diagram

Two ways to make a ROM

1. Inferred: plain Verilog

reg [11:0] img_a [0:4095];
initial $readmemh("assets/chip.hex", img_a);   // path from the Quartus project folder
always @(posedge clk) qa <= img_a[address];    // registered read = block RAM

Quartus sees an array that is only read, with an initial $readmemh, and a clocked read: it builds an M9K block-memory ROM. Portable to any tool, and the same file works in simulation. The read must be clocked; a combinational read becomes logic instead of memory.

2. The altsyncram IP

rom_ip #(.WIDTH(12), .DEPTH(4096), .AW(12), .INIT_FILE("assets/chip.mif"),
         .LPM_HINT("ENABLE_RUNTIME_MOD=YES,INSTANCE_NAME=IMG"))
  img_b (.clk(clk), .address(address), .q(qb));

lib/rtl/rom_ip.v instantiates Altera's memory block directly (what the IP wizard would write). It gives full control (memory type, output register) and one feature inference cannot: a name for the In-System Memory Content Editor, so the PC can read and rewrite the ROM over the USB cable while the design runs.

Timing: the address goes one pixel ahead

A block-memory ROM answers one clock after it gets the address. The screen moves one pixel per clock, so the design asks every ROM for the next pixel (x + 1); the answer then arrives exactly for the current pixel. Without this, every picture would be shifted one pixel to the right.

Make your own ROM content

python scripts/img2rom.py my_picture.png assets/my_picture --size 64x64
→ my_picture.hex (for $readmemh), my_picture.mif (for the IP), my_picture_preview.png (in 12-bit colour)

Text: write it in assets/screen.txt (up to 30 lines of 40 characters) and run python examples/02_rom/assets/make_images.py; it writes text.hex and the two pictures.

Rewrite a ROM while the design runs

cd examples/02_rom
quartus_stp -t ../../scripts/mem_edit.tcl list                          # MEM: index=0 name=IMG depth=4096 width=12
quartus_stp -t ../../scripts/mem_edit.tcl write IMG assets/smiley.mif   # picture B changes at once
quartus_stp -t ../../scripts/mem_edit.tcl read  IMG out.mif             # save what is in it now

The change lives in the FPGA only: reprogramming or a power cycle brings back chip.mif. To make it permanent, change the file and rebuild. The same works for RAMs, and it is a quick way to try new pictures, text or lookup tables without a 2-minute build.

Measured on the board

• Screen read back over JTAG (python scripts/de10.py screen): text and both pictures exactly as drawn.
• mem_edit.tcl list finds IMG, 4,096 × 12, read/write; writing smiley.mif changed picture B only (capture above).
• Resources: 6,238 logic elements (13 %); memory bits 62 % of which the screen read-back buffer is 56 %. Timing: no negative slack.

Run it

python scripts/de10.py build examples/02_rom
python scripts/de10.py program examples/02_rom
python scripts/de10.py screen logs/rom.png            # the screen, read back over USB

Build it yourself

python scripts/new_project.py examples/02_rom rom_top --lib display debug font rom
python scripts/de10.py build examples/02_rom
python scripts/de10.py program examples/02_rom

Test without the board

python scripts/sim.py examples/02_rom/sim/tb_rom_screen.sv --modelsim
→ 81 checks, 0 errors   PASS

ModelSim, because picture B is the Altera IP; Altera's own simulation model reads the same .mif.
