12 · DSP multipliers vs logic

The MAX 10 has hardware multipliers. This example runs the same multiply-accumulate engine twice, once in them and once in ordinary logic, checks both against Python, and measures what each costs.

Verified on the board 2026-10-24 Quartus Prime Lite 17.1 No shield needed Skill: use-dsp-multipliers

Download dsp_multipliers.qar (full project)

The repo keeps the full project (.qar, plus the sources here) but no prebuilt bitstream: one build (a few minutes) makes the .sof on your computer.

The result

One 18 × 18 signed multiplier	Embedded multiplier (DSP)	Logic elements
Resources	2 multiplier elements, 0 logic elements	368 logic elements
Fastest clock for the engine (Fmax, slow corner)	175 to 187 MHz	81 to 93 MHz
Runs here at	100 MHz	75 MHz (at 100 MHz it failed timing by 0.78 ns)
Result of 1,000,000 multiply-adds	`01E17200A928`	`01E17200A928`

The Python reference (sim/mac_reference.py) gives 01E17200A928 too. The 10M50 has 288 multiplier elements (144 of 18 × 18), so a design can have up to 144 multiplies running every clock for free. Fmax moves a few MHz between builds; the ranges are from the builds of this example.

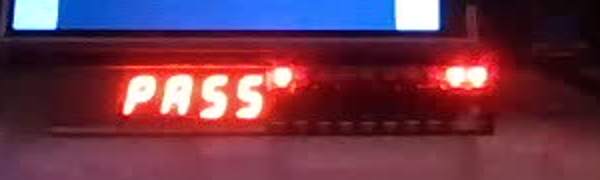

The 7-segment display showing PASS.

What you will see

Where	What
HEX3..HEX0	PASS when both engines match the expected result, FAIL if not, RUN while running
LEDR0, LEDR1, LEDR9	DSP done, logic done, pass
KEY0	Run again (each run is 10 ms at 100 MHz)
Your PC	`DSP acc=01E17200A928 cycles=000F4241` and the same for `LOGIC` (0xF4241 = 1,000,001 clocks)

Block diagram

How to choose where a multiply goes

(* multstyle = "dsp" *)                       // or "logic"
module mult18_dsp (input signed [17:0] a, input signed [17:0] b, output signed [35:0] p);
  assign p = a * b;
endmodule

By default Quartus puts every * it can into the embedded multipliers. Most of the time that is what you want.
Put the multstyle attribute on a module. On a wire inside a generate block Quartus 17.1 ignored it and both engines ended up in DSP blocks: check the fitter's per-entity report ("DSP Elements" column) to see where a multiply really went.
Each embedded multiplier is 18 × 18 (or two 9 × 9). Wider products use several, plus adders in logic.
Register the product before adding it (the engine does: p <= a * b; acc <= acc + p;): one multiply-add per clock and an easy timing path.

Things learned building it

A result that crosses clocks after a "done" handshake still shows up as a timing failure (here −0.24 ns from 75 MHz into 50 MHz). It is safe because the value is not changing when it is read; say so in the .sdc: set_false_path -from [get_registers {*mac:*|acc[*] *mac:*|cycles[*]}] -to [get_clocks clk50] (src/timing.sdc).
Checking against a reference model (Python) catches everything: off-by-one in the pipeline, wrong signs, wrong widths.

Run it

python scripts/de10.py build examples/12_dsp_multipliers
python scripts/de10.py program examples/12_dsp_multipliers
python scripts/de10.py log 2

Build it yourself

python scripts/new_project.py examples/12_dsp_multipliers mult_top --lib pll print seg7
python scripts/de10.py build examples/12_dsp_multipliers

Test without the board

python examples/12_dsp_multipliers/sim/mac_reference.py 1000      → acc=FFDBBCBDE1C7
python scripts/sim.py examples/12_dsp_multipliers/sim/tb_mac.sv      → both styles FFDBBCBDE1C7   PASS

Files

File	What
`src/mult_top.sv`	Top: PLL, two engines, compare, display, report
`src/mac.sv`	The engine, plus `mult18_dsp` and `mult18_logic`
`src/timing.sdc`	Clocks and the false path for the results
`sim/mac_reference.py`, `sim/tb_mac.sv`	Python reference and unit test
